Freight Elevator in Pakistan: Price, Capacity & Industry Uses
Pakistan’s manufacturing and commercial sectors are growing vertically. Textile mills in Faisalabad, pharmaceutical warehouses in Lahore, cold storage facilities in Karachi, and multi-floor retail plazas in Islamabad are all dealing with the same operational challenge: moving heavy goods between floors safely, quickly, and without burning through daily labor hours.
A freight elevator solves this. But Pakistan’s market has a gap that hurts buyers. Most articles and suppliers only tell you what a freight elevator is. They do not tell you how to size it correctly for your industry, what you will actually pay in 2026, or what separates a genuine heavy-duty installation from an underpowered unit dressed up in industrial language.
Milano Technologies supplies the KOYO High-Accuracy Freight Elevator in Pakistan, one of the most precisely engineered heavy-duty freight systems available in the country for industrial and commercial use. This guide gives you everything you need to evaluate, compare, and buy correctly.
What a Freight Elevator Actually Is (And What It Is Not)
A freight elevator, also called a cargo lift or goods lift in Pakistan, is a vertical transportation system purpose-built for moving heavy loads between floors. It is structurally different from a passenger elevator in almost every way that matters for industrial use.
The cabin is larger, the floor is reinforced steel or chequer plate, the door openings are wider to accommodate pallet trucks and forklifts, and the entire drive system is rated for significantly heavier loads and continuous duty cycles. A standard passenger elevator might run a few hundred trips per day in a commercial building. A freight elevator in an active warehouse or factory runs several hundred more, under full load, every single working day.
What a freight elevator is not: a converted passenger elevator with a steel floor, which is what some suppliers in Pakistan’s market offer as an “industrial lift.” The difference shows up in motor burnout rates, cabin deformation, and safety system failures within two to three years of heavy operation. Genuine freight elevators like the KOYO THJ and THJW series use steel seamless joint technology in cabin construction, which significantly improves overall structural strength and rigidity under repeated heavy loading, something a repurposed passenger unit simply cannot replicate.
Freight Elevator Price in Pakistan: Verified Breakdown by Capacity
Freight elevators in Pakistan range from PKR 8,340,000 to PKR 15,290,000 for standard commercial and industrial units. However, that range covers a wide spectrum of capacity and drive technology. The table below maps price to capacity and use case so you can identify the right bracket before requesting quotes.
Freight Elevator Type | Load Capacity | Estimated Price PKR | Best Industry Fit |
Light-duty cargo lift | 500 kg to 1,000 kg | 1,500,000 to 3,500,000 | Retail stockrooms, restaurants, small warehouses |
Mid-duty traction freight elevator | 1,000 kg to 3,000 kg | 4,000,000 to 7,000,000 | Supermarkets, commercial plazas, pharmaceutical storage |
Heavy-duty traction freight elevator | 3,000 kg to 6,000 kg | 7,000,000 to 12,000,000 | Textile factories, industrial warehouses, cold storage |
Extra heavy-duty industrial elevator | 6,000 kg to 10,000 kg | 12,000,000 and above | Manufacturing plants, printing presses, steel fabricators |
Hydraulic freight elevator | 500 kg to 5,000 kg | 3,000,000 to 8,000,000 | Low-rise factories, auto workshops, vehicle lifts |
Separate installation charges range from PKR 500,000 to PKR 1,500,000 depending on shaft condition and civil work scope. Monthly maintenance averages PKR 20,000 to PKR 50,000 for ongoing AMC coverage.
One cost point most buyers miss: the electrical supply upgrade. Heavy-duty freight elevators require a dedicated three-phase power circuit with surge protection. In older industrial buildings across Lahore’s Quaid-e-Azam Industrial Estate or Karachi’s SITE area, this upgrade alone can add PKR 100,000 to PKR 300,000 to the project. Budget for it upfront.
THJ vs THJW: The Two KOYO Freight Elevator Models and When to Choose Each
Most freight elevator buyers in Pakistan are not aware that serious industrial freight systems come in two distinct configurations, each optimised for a different operational profile. The KOYO High-Accuracy Freight Elevator range covers both.
- THJ Series (Machine Room): is built for high-frequency operation and maximum energy efficiency. If your facility runs the elevator continuously throughout the working day, such as a multi-floor textile factory or a busy logistics centre, the THJ series is the correct choice. Its machine room configuration supports long-term high-duty-cycle use with a high transmission rate and lower energy consumption per trip over time.
- THJW Series (Machine-Room-Less): eliminates the need for a dedicated machine room above the hoistway, which is a genuine space and cost saving in new construction projects. It operates at lower noise levels and uses no lubricating oil, making it the right choice for clients with environmental mandates, noise-sensitive facilities, or buildings where floor space above the shaft is already allocated. Both series apply VVVF drive control technology, which delivers superior control precision compared to conventional freight elevator systems and results in smooth starts, accurate floor leveling, and reliable flatbed accuracy that prevents pallet jacks and trolleys from catching at landings.
Where Freight Elevators Are Used in Pakistan: Industry by Industry
Pakistan’s industrial geography determines where freight elevator demand is concentrated and what specifications each sector requires.
Industry | Location Concentration | Key Requirement |
Textile manufacturing | Faisalabad, Sheikhupura, Karachi SITE | Continuous duty, 2,000 kg to 5,000 kg, high cycle rating |
Pharmaceutical warehousing | Lahore, Karachi | Clean cabin, contamination-free, smooth leveling |
Cold storage and food processing | Karachi, Multan | Insulated panels, moisture-resistant components |
Hospitals and healthcare | All major cities | Low vibration, precise floor leveling, emergency backup |
Retail and supermarkets | Karachi, Lahore, Islamabad | Wide door opening for pallet trucks, mid-load capacity |
Printing and publishing | Lahore, Karachi | High-capacity platform for paper reels and heavy machinery |
Auto workshops and car plazas | DHA Karachi, Gulberg Lahore | Heavy-duty hydraulic vehicle lift configuration |
The hospital sector deserves specific attention. Medical freight elevators require leveling accuracy of 3 mm or less at each floor to prevent equipment tipping, low-vibration operation to protect sensitive instruments, and emergency power backup. For hospital and healthcare applications, Milano Technologies offers the dedicated KOYO Intelligent Stability Medical Elevator, which is purpose-engineered for those specific requirements rather than adapted from a general freight specification.
5 Technical Specifications to Confirm Before Signing Any Contract
Most buyers in Pakistan focus on price and capacity alone. These five specifications determine whether the elevator will actually perform for your operation long term.
- Drive control system. Confirm that the unit uses VVVF (Variable Voltage Variable Frequency) drive control. This technology regulates motor speed continuously, resulting in smooth starts and stops, accurate leveling, and significantly lower energy consumption compared to older relay-based control systems. The KOYO THJ and THJW series both use VVVF as standard, not as an upgrade.
- Flatbed accuracy. This is the precision with which the elevator cabin levels with each floor landing. Poor flatbed accuracy causes pallet jacks to catch on the gap, slows loading operations, and creates a worker safety risk. High-accuracy freight systems deliver consistent leveling that allows single-person pallet operation without manual adjustment.
- Cabin structural integrity. Ask specifically how the cabin is constructed. Steel seamless joint technology, as used in the KOYO freight elevator series, improves the overall strength, stiffness, and long-term resistance to deformation under repeated heavy loading. Welded panel construction without seamless joining degrades faster under industrial duty cycles.
- Safety device certifications. Confirm the overload protection system, speed governor, emergency brake, and the double protective outrigger structure are all certified components. The outrigger is a safety feature that stabilises the cabin under off-centre loading, which is common when forklifts load pallets from one side.
- Door opening dimensions. Confirm clear opening width and height in millimetres before ordering. Standard pallet trucks require a minimum clear width of 1,400 mm. Many suppliers quote cabin width rather than clear opening width, which are different measurements that directly affect daily operations.
The Mistake That Costs Pakistani Businesses the Most
The single most expensive mistake in the Pakistani freight elevator market is buying on price alone from a supplier with no engineering support after installation.
Pakistan’s market has dozens of companies offering cargo lifts sourced from manufacturers at attractive headline prices. The problem is not the equipment origin. The problem is the absence of local engineering capacity when something goes wrong during operation, which it will at some point in any industrial elevator’s service life.
A freight elevator that goes out of service in a working textile factory or pharmaceutical warehouse is not just an inconvenience. It halts production. The cost of two weeks of downtime waiting for a spare part to clear customs routinely exceeds the entire purchase price of the cheaper unit. Choosing a supplier with verified local engineering teams and an accountable AMC structure is the decision that separates a ten-year asset from a three-year liability.

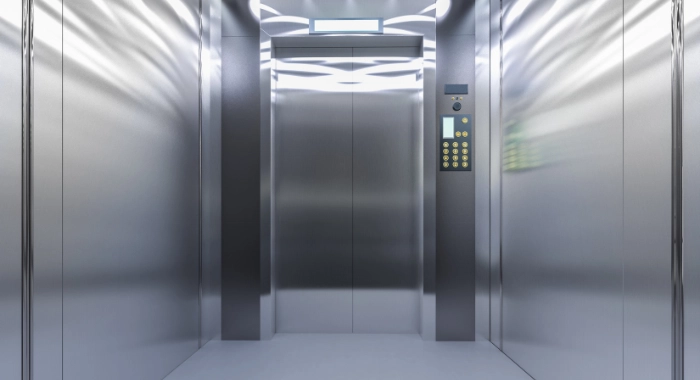

Install a Freight Elevator That Works as Hard as Your Business Does
Choosing the right freight elevator in Pakistan is an engineering decision, not a procurement transaction. The load capacity, drive type, cabin construction, flatbed accuracy, and after-sales support structure all determine whether your investment delivers a decade of reliable service or years of maintenance problems.
Milano Technologies supplies and installs the KOYO High-Accuracy Freight Elevator across Karachi, Lahore, and Islamabad, with local engineering teams who manage installation, commissioning, and ongoing maintenance under a single accountable contract. The THJ and THJW series are available in a wide range of load capacities to match your exact operational profile, whether your project is a textile factory in Faisalabad, a medical warehouse in Lahore, or a commercial plaza in Karachi.
Contact Milano Technologies today on +92 347 711 1104 or visit our offices in Lahore, Islamabad, or Karachi for a free site survey and a detailed BOQ for your freight elevator project.
