Lift for 5 Marla House in Pakistan: Yes It Fits, and Here Is Exactly Where
The most common thing we hear from 5 marla homeowners is a doubt disguised as a question. “My plot is too small for a lift, right?” The honest answer surprises most people. A lift for 5 marla house in Pakistan not only fits, it often takes less floor space than the staircase landing you already walk past every day.
This guide is written for the largest home category in Pakistan. The 5 marla plot is by a wide margin the most popular residential size in the country, forming the backbone of DHA, Bahria Town, LDA schemes and Johar Town. If you own one and you are tired of climbing to the third floor with grocery bags or worrying about aging parents on the stairs, here is precisely what a lift needs, where it goes, and what to check before you commit.
First, the Space Math for a 5 Marla Plot
A standard 5 marla plot in Pakistan measures 25 feet by 45 feet, giving roughly 1,125 square feet of ground area, as confirmed by construction planners across property guides in Pakistan. Homeowners assume a lift eats a bedroom’s worth of that space. It does not.
A compact KOYO home lift needs an internal cabin footprint of about 1 meter by 1 meter, and a total shaft footprint of roughly 1.2 meters by 1.3 meters once walls are included. In square feet, that is under 17 square feet per floor. Put simply, a lift consumes less than 2 percent of your ground floor, and that space is reclaimed vertically rather than lost, because it stacks in the same position on every level.
Where the Lift Actually Goes in a 5 Marla Layout
On a 25 foot wide front, position is everything, and there are three practical spots our engineers choose from during a survey.
The first and most popular is the staircase void, the empty vertical column in the center of most 5 marla stairwells. Placing the lift here uses dead space and keeps the lift beside the stairs, which building regulations prefer. The second option is a rear corner near the kitchen, ideal when you also want to move heavy items between floors. The third is an external shaft attached to the back or side wall, the go to solution for a house that is already built and has no internal room to spare.
The Two Word Answers: New Build vs Retrofit
Whether your 5 marla house is under construction or already finished changes everything about the installation, so we treat them as two separate projects.
For a new build, tell your architect before the grey structure stage. Reserving a shaft during construction costs a fraction of adding one later and gives you a perfectly aligned hoistway. For a retrofit, meaning an existing house, a shaftless or external structure model is used so no walls need major demolition. Both work on 5 marla, but the earlier you plan, the cheaper and cleaner the result.
Lift for 5 Marla House in Pakistan – Space and Fit Checklist
| Requirement | What a 5 Marla Home Needs | Why It Matters |
|---|---|---|
| Cabin footprint | About 1m x 1m internal | Fits two adults or one person with a wheelchair |
| Shaft footprint | About 1.2m x 1.3m with walls | Under 17 sq ft, less than most stair landings |
| Pit depth | As low as 150mm for compact models | Shallow pit avoids deep, costly excavation |
| Headroom | Reduced overhead for MRL units | No machine room, so your rooftop stays free for tanks and solar |
| Power supply | Single phase compatible options | Avoids a costly three phase upgrade on a small home |
| Position | Stair void, kitchen corner or external | Uses dead space instead of a room, per LDA byelaws |

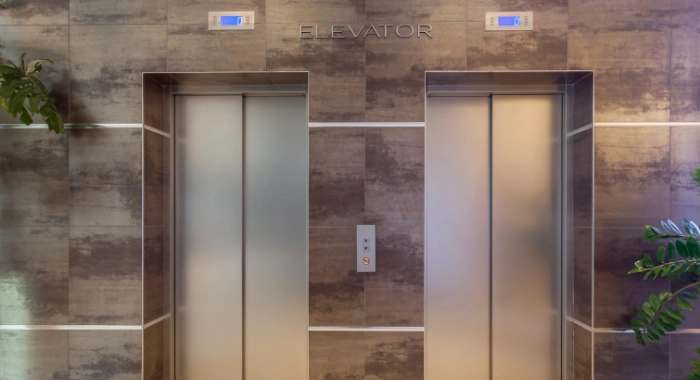

Which Lift Type Suits a 5 Marla House Best?
Not every lift belongs in a compact home. For most 5 marla houses of two or three storeys, we recommend an MRL, or machine room less, home lift. The reason is specific to Pakistani homes: an MRL keeps its machinery inside the shaft, so your limited rooftop stays clear for the water tank and solar panels that almost every new 5 marla house now installs.
Hydraulic models are a second option where a small pit is available and travel is only two stops. Whichever type fits your home, KOYO systems carry the same safety engineering used in their commercial installations across more than 120 countries, which means a small home lift is not a lesser machine, just a smaller one.
The Load Shedding Factor on a Small Home Lift
A lift for a 5 marla house in Pakistan has to survive power cuts, and this is planned during the survey rather than discovered later. Every KOYO unit includes an automatic rescue device that gently moves the cabin to the nearest floor and opens the doors if power fails, so no one is trapped. For continuous use through outages, we size a small UPS matched to the lift’s startup current, which is higher than its running current and the reason an undersized backup fails.
Book a Free Site Survey | Lift for 5 Marla House in Pakistan
The only way to know exactly where your lift fits is to have an engineer see the space. Milano Technologies installs KOYO home lifts in 5 marla houses across Lahore, Islamabad and Karachi, choosing the right position and cabin size for your specific layout.
Contact Us: Call or WhatsApp +92 347 7111104 and our engineer will survey your home free of charge, with a written proposal and custom quote within 3 working days.
Frequently Asked Questions
Yes. A compact home lift needs under 17 square feet of shaft space, often less than your existing staircase landing, and fits in the stair void, a rear corner or an external shaft.
No. An MRL lift houses its machinery inside the shaft, keeping your rooftop free, which is the main reason it suits small Pakistani homes.
Yes. Retrofit and external shaft models are designed for existing homes and avoid major demolition. The survey confirms the best position.
A standard 1 meter by 1 meter cabin carries two adults comfortably, or one person with a wheelchair and space for essentials.
